首頁 > 產品中心 > DO-214AA封裝：PXXX0SA/B/C系列
詳細介紹

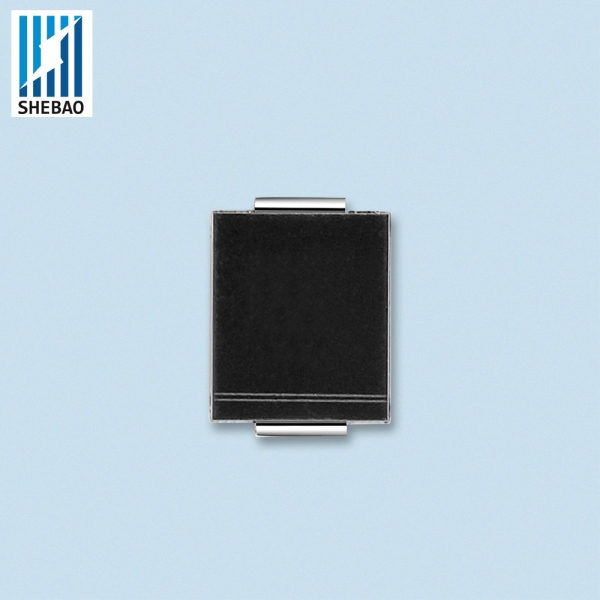

SMT貼片：DO-214AA封裝：PXXX0SA/B/C系列
封裝：DO-214AA
型號：P0080S；P0300S；P0640S；P0720S；P0900S；P1100S；P1300S；
P1500S；P1800S；P2300S；P2600S；P3100S；P3500S(A/B/C)
抗雷擊等級@10/700μs：PXXXOSA：2KV  PXXXOSB：4KV  PXXXOSC：6KV
 ...........................................DO-214 SIDACtor Data.......................................
The DO-214 SIDACtor is a solid state protection device designed for telecommunications applications such asmodems,
line cards, fax machines, etc。
The SIDACtor is used to help equipment meet various regulatory requirements including: GR 1089, ITU K.20 & K.21,
 IEC 950, UL 1459 & 1950 and FCC Part68。

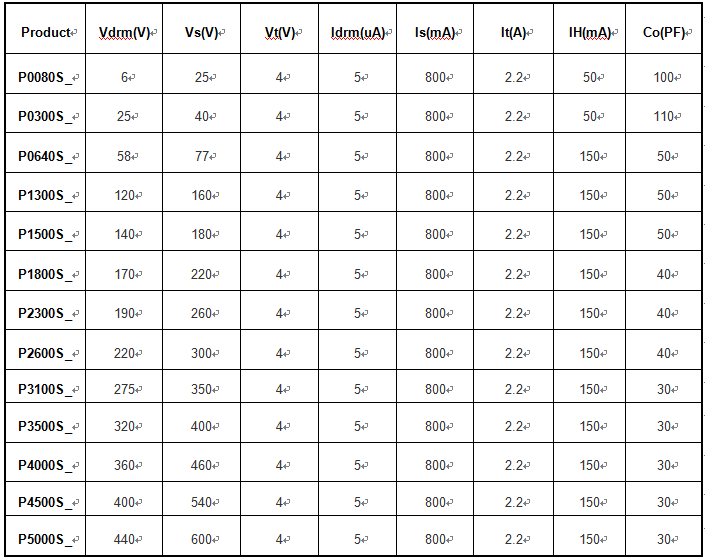

產品參數：

* For individual “SA”, “SB” and “SC” surge ratings, see table below.
Notes:
●All measurements are made at an ambient temperature of 25°C. IPP applies to -40°C through +85°C temperature range。
●IPP is a repetitive surge rating and is guaranteed for the life of the product。
●Listed SIDACtors are bi-directional. All electrical parameters & surge ratings apply to forward and reverse polarities。
●VDRM is measured at IDRM。
●VS is measured at 100V/µs.
●Special voltage (VS & VDRM) and holding current (IH) requirements are available upon request。
●Off-state capacitance is measured at 1MHz with a 2 volt bias and is a typical value for “SA” and “SB” product. “SC”
●capacitance is approximately 2x the listed value。
●The off-state capacitance of the P0080SB is equal to our “SC” device。
Surge Ratings
Series IPP 2x10µs Amps IPP 8x20µs Amps IPP 10x160µs Amps IPP 10x560µs Amps IPP 10x1000µs Amps ITSM60Hz Amps dI/dt Amps/µs
A   150 100 50 50 20 500
B   250 150 100   30 500
C 500 400 200   100 60 500

.......................................................ThermalConsiderations..................................

Package Symbol Parameter Value Unit
  Tj Junction Temperature Range -40 to +150 °C
  Ts Storage Temperature Range -65 to +150 °C
DO-214 Tc Maximum Case Temperature +75 °C
Rθjc Thermal Resistance: junction to case +28 °C/W
Rθja Thermal Resistance: junction to ambient +90 °C/W

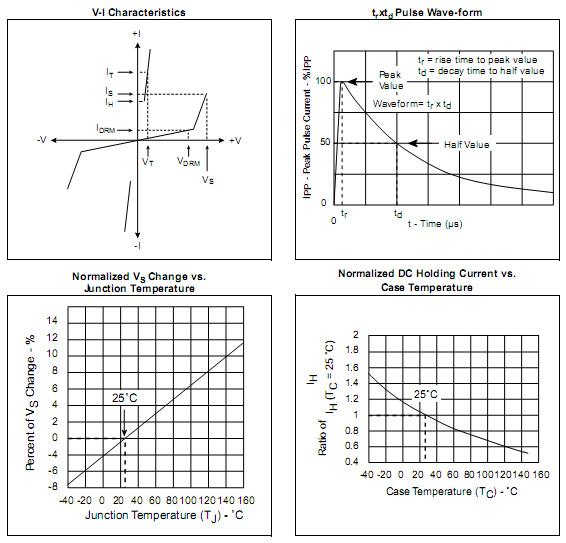

......................................................... Characteristic Curve......................................
